Side Injecting Machine SX250/SX300

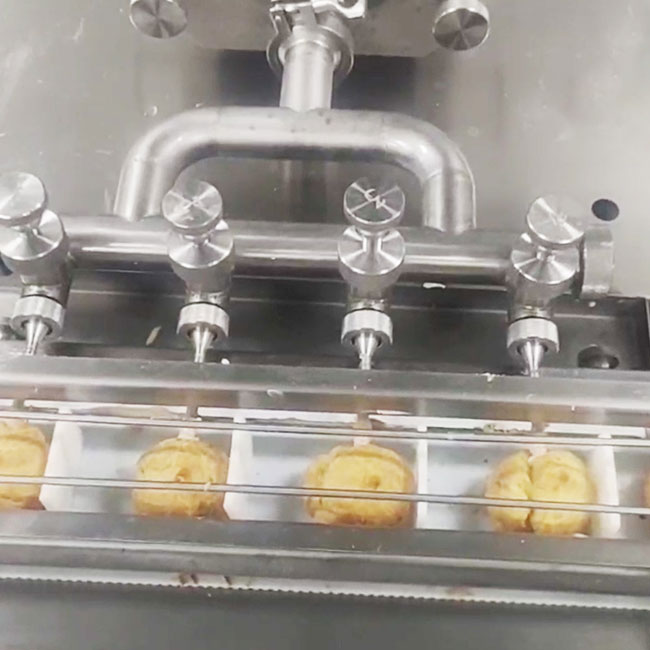

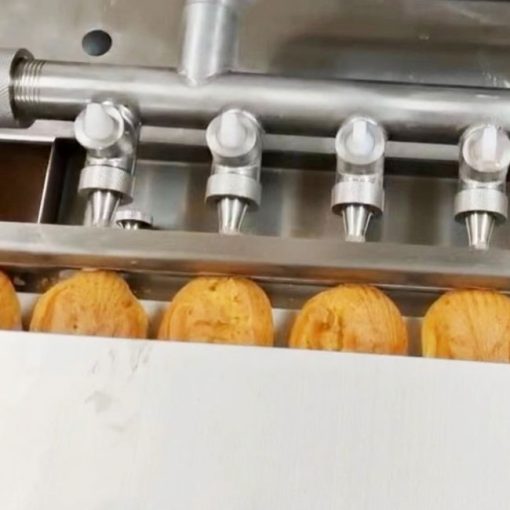

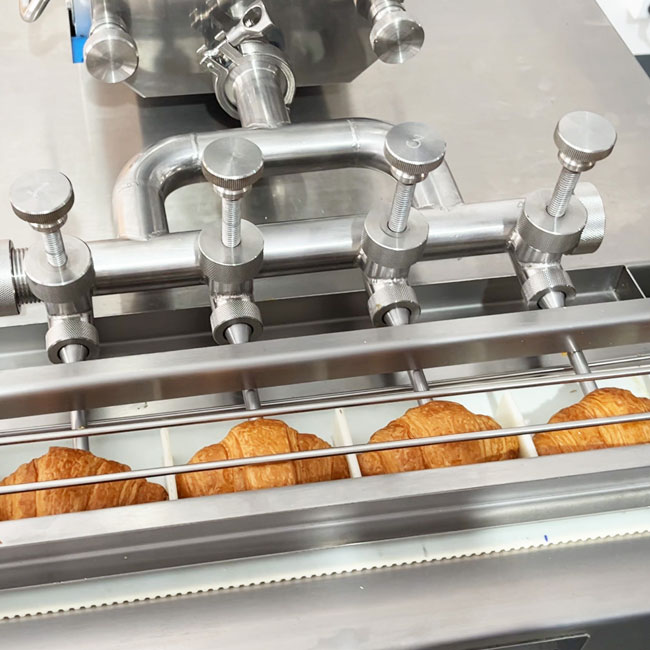

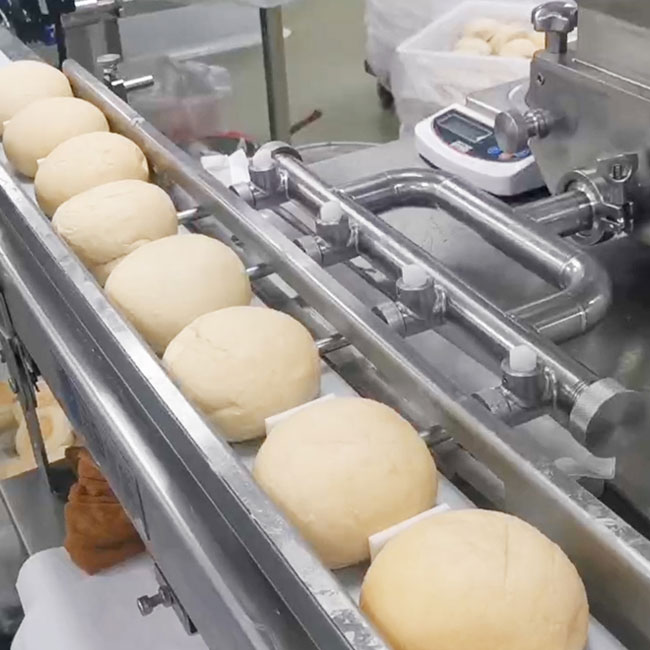

Applicable to side injection filling of cakes, bread, donuts and puff products.
Suitable for the production of semi-fluid fillings: Cream, mousse, jam, chocolate sauce, cheese sauce, etc.
Dot filling and moving filling modes are optional.
The maximum applicable product length is 150mm, and accessories can be replaced to produce products of different sizes.
Designed with quick disassembly and cleaning accessories.

2500×1050×1160mm

Specification

Model	SX250	SX300	Configurable Options: SX250 2500mm. Standard 4-needle injecting system, 6-needle and 8-needle injecting system can be customized according to actual needs (injecting system + conveyor, to be customized according to product size), conveyor line length 2500mm
Power	2.3KW	2.3KW
Voltage/Frequency	220V/50HZ	220V/50HZ
Compressed Air Pressure & Fow	–	–	Configurable Options: SX300 3000mm. Standard 4-needle filling system, 6-needle and 8-needle filling system can be customized according to actual needs (filling system + belt, to be customized according to product size), conveyor line length 3000mm
Capacity	2000-4000pcs/hour
Hopper Volume	46L	46L
Dimension (LWH) mm	250010501160	250010501160
