Multi-functional Filler MF800

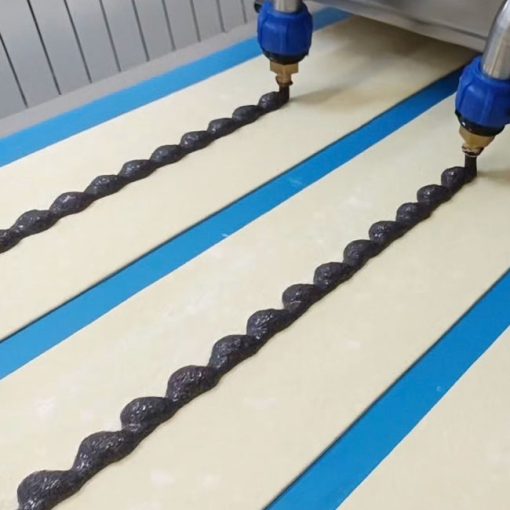

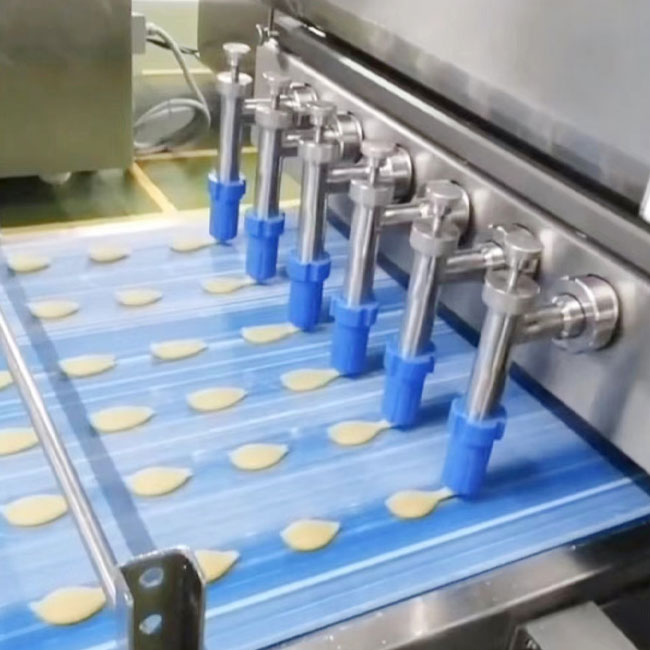

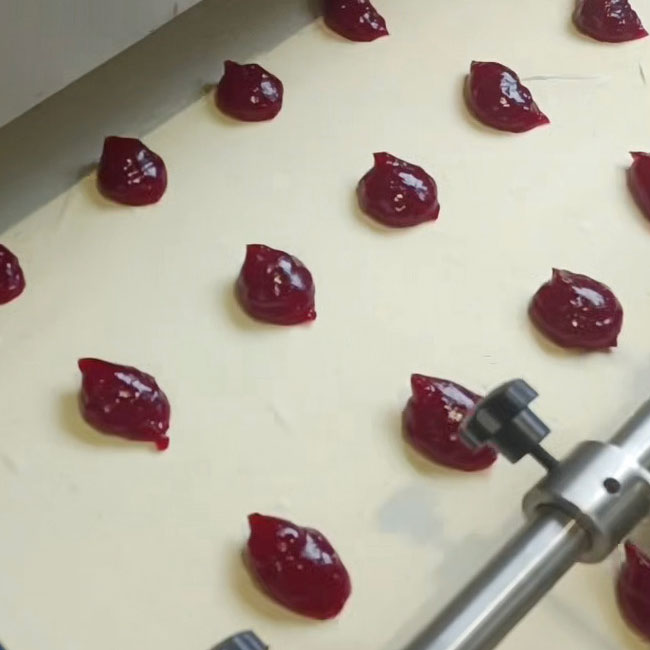

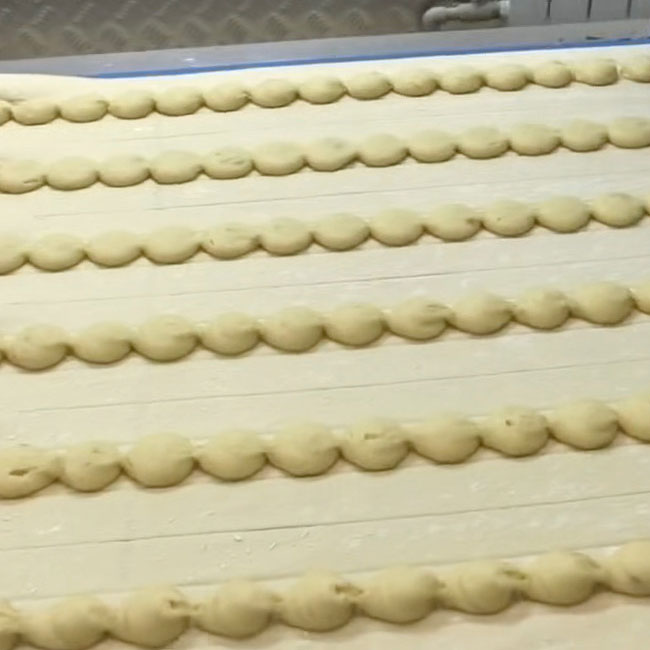

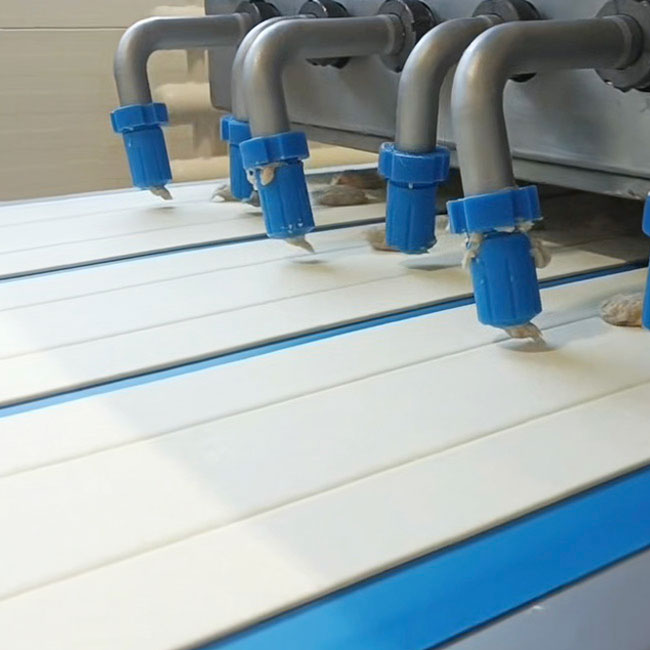

Multifunctional, intermittent or continuous filling machine for soft, hard, fibrous and creamy fillings.
Configure the dough product line for quantitative filling.
Widely used in: Caviar, fruit puree, jam, onion chicken, garlic bacon, vegetable and meat products, etc.

1200×1720×1600mm

Specification

Model	MF800	Configurable Options: 1. Standard configuration: Vane pump system + (screw pump system or piston pump system) 2. High configuration: Vane pump system + screw pump system + piston pump system
Power	1.8KW
Voltage/Frequency	220V/50HZ
Compressed Air Pressure & Fow	0.4-0.6MPa 200L/min
Capacity	10-15g: ≈ 90 times/min 30g: ≈ 80 times/min 60g: ≈ 60 times/min
Hopper Volume	65L
Dimension (LWH) mm	120017201600
